V-Port Ceramic Ball Valve

Electric V-Port Ceramic Control Ball Valve

HP & HT Ceramic Ball Valve

V-port OptionsProduct DescriptionFlow Coefficient Table

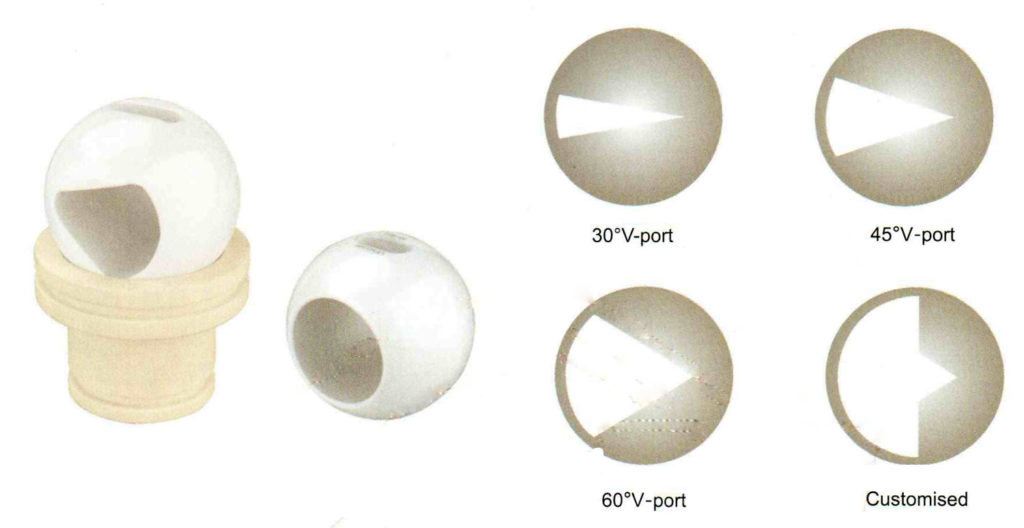

V-port Options

  • Electric V-port ceramic control ball valve has equal percentage character which can adjust the flow. It can satisfy small flow control and work stabile, more accurate and flexible besides more wide adjustable range, speed regulation, easy maintenance and cost-saving. In the process of opening and closing, the sphere of the v-shaped channel and the seat with shearing action between medium can be chopped fiber, solid particles, to prevent ball stuck. Especially suitable for freezing pipeline site and control pulp, sewage with fiber and solid particles and powder medium.
  • The wetted part adopts ceramic material (HRC88), which only inferior to diamond. The ceramic lined valve has a very high abrasion resistance, corrosion resistance, erosion resistance, good insulation and small thermal expansion, and mainly applied in electric power, petroleum, chemical, metallurgy, mining, sewage treatment and other harsh conditions.
  • This valve fit in granule medium of high hardness, or medium with erosion soft granule. Nominal pressure PN10∼PN40. Applicable temperature ≤200 °C. Manufacture and design as per GB, JIS, API standards.
