Cast Steel Globe Valves
SAKHI globe valve are manufactured to BS 1873 and API Std. 600, and tested to API Std. 598.
Globe valves are used where throttling or both throtting and shut-off are required. They can also be used for on-off service, but because of high pressure drop, this is generally confined to applications where the valve is normally closed and drop is not important when the valve is open.
BODY AND BONNET:
Body spherical form, of large radius, allows for the stresses, turbulence and resistance to flow to be kept to a minimum.
Bonnets on all valves are equipped with a back seat bushing.

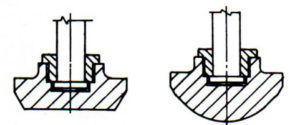

DISC:
The valve is normally supplied with plug type disc. On request we produce ball type seat discs.
